Ceiling Fans Controller

CL145+RF590A
*Compatibility & stability
*Low power consumption, high efficiency, and easy operation
*Dc brushless motor
*With function of ON/OFF, speed adjustment, dimming and color temperature
*Natural wind mode
*Forward & reverse setting
*Timming

Consult

Features Technical Indicators Overall Dimension

500 hours of double 85 test for reliable quality
FCC, ETL dual certification for safety
Smooth fan gear switching, no flickering, long control distance

Fans level	One level	Two level	Three level	Four level	Five level	Six level
Power	3.43	5.78	9.83	16.94	26.9	39.57
RPM	88	115	143	173	202	229
LED power	Max 20W
Brightness setting	Stepless dimming, minimum brightness is 11% of maximum lumen
Color temperature	3000K/4000K/5500K
Input/output	Input: AC220V,50/60Hz, Motor output: AC220V(MAX 40W), LED output: DC24V(MAX 20W)

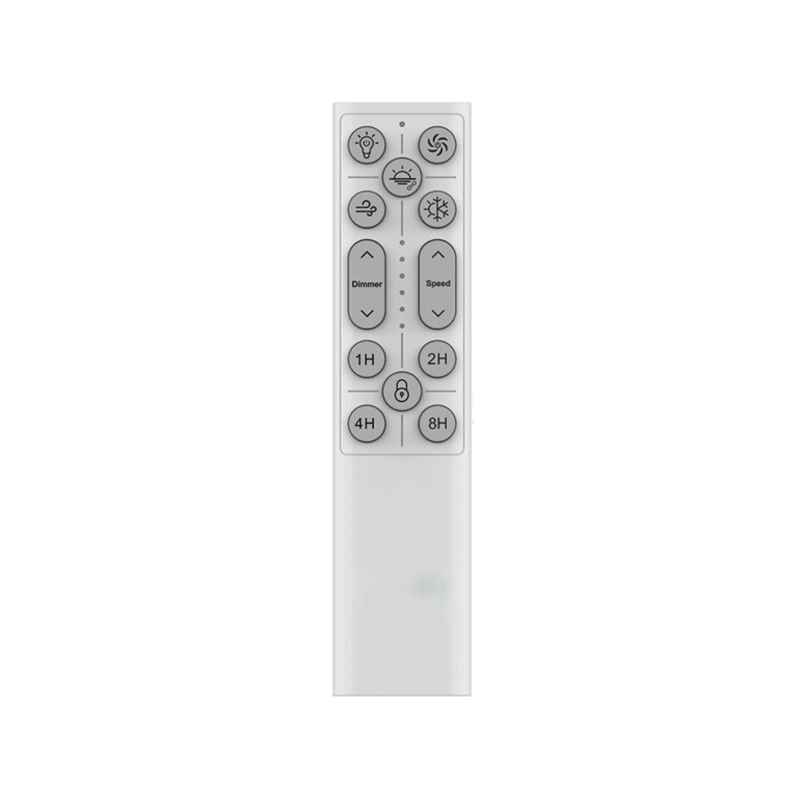

Remote working voltage	2.4V-3.6V
Remote frequency	433.92MHz
